What are the types of fiber patch cords?

2022-08-25
287

Everyone has heard of fiber optic patch cords. So, what is a fiber patch cord, do you know? What are the types of fiber optic patch cords? What interfaces are there, do you know? Today, I am going to share it with you.



Optical fiber jumpers connect equipment and optical fiber wiring links by installing connectors on both ends of the optical cable; they have a thicker protective layer and are generally used for the connection between optical transceivers and terminal boxes, and are used in optical fiber communication systems, optical fiber Access network, optical fiber data transmission and local area network and other fields. Let's take a look at the finished fiber jumper diagram first.



Fiber Jumper

We know what fiber jumpers look like, so what are the types of fiber jumpers? What is the difference? Continue to look down below.



Optical fiber jumpers can be divided into common silicon-based single-mode and multi-mode jumpers according to different transmission media, and other optical fiber jumpers such as plastic as the transmission medium; according to the structure of the connector, they can be divided into: FC jumpers , SC jumper, ST jumper, LC jumper, MTRJ jumper, MPO jumper, MU jumper, SMA jumper, FDDI jumper, E2000 jumper, DIN4 jumper, D4 jumper and so on. The following is the infiberone optical module mall to introduce several common optical fiber connectors:

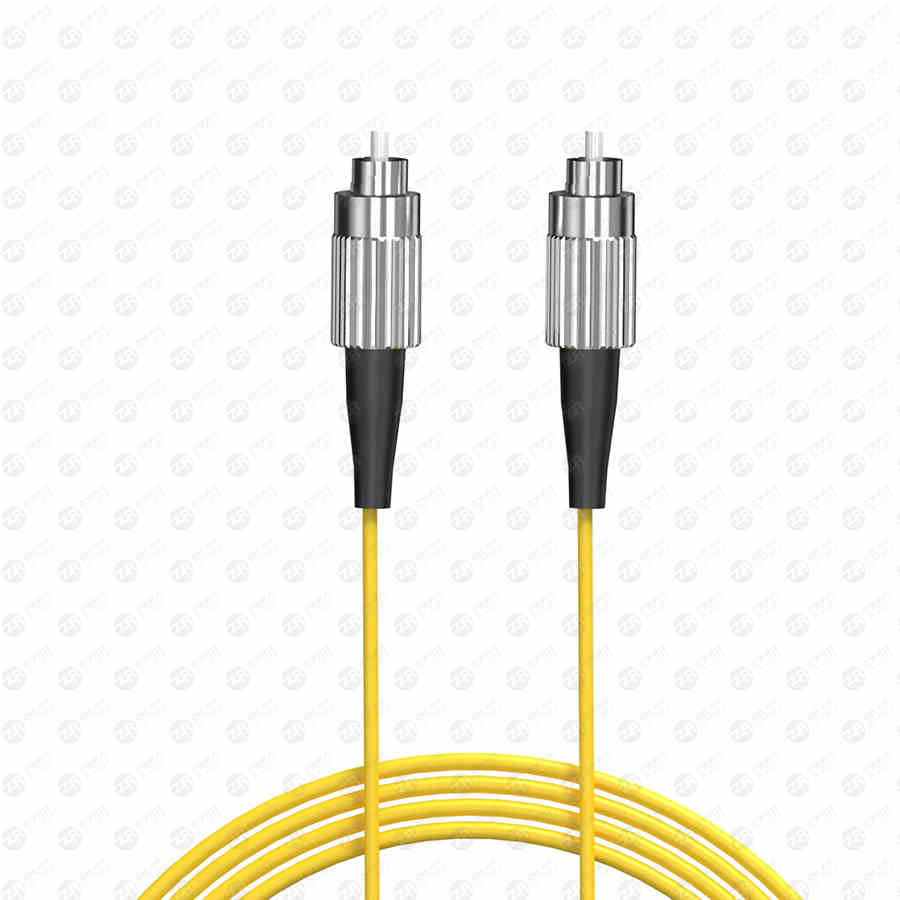

①FC type optical fiber connector: The external strengthening method is a metal sleeve, and the fastening method is a turnbuckle. Generally used on the ODF side (the most used on the patch panel) Example: FC type mtp fiber jumper

fc fc

②SC-type optical fiber connector: the connector for connecting the GBIC optical module, its shell is rectangular, and the fastening method is the plug-and-pull type, which does not need to be rotated. (The most used on router switches) Example: SC type mtp fiber jumper



③ST type optical fiber connector: commonly used in optical fiber distribution frame, the outer shell is round, and the fastening method is turnbuckle. (For 10Base-F connections, the connectors are usually ST type. Often used in fiber optic distribution frames)



④LC-type fiber optic connector: a connector for connecting SFP modules, which is made with a modular jack (RJ) latch mechanism that is easy to operate. (Commonly used in routers) Example: LC type mtp fiber jumper



⑤MT-RJ: A square fiber optic connector with integrated transceiver, one dual fiber transceiver integrated. The MTRJ type fiber patch cord consists of two high precision plastic molded connectors and fiber optic cables. The outer parts of the connector are precision plastic parts, including a push-pull plug-in clamping mechanism.



Suitable for indoor applications in telecommunication and data network systems.What are the types of fiber patch cords?



Everyone has heard of fiber optic patch cords. So, what is a fiber patch cord, do you know? What are the types of fiber optic patch cords? What interfaces are there, do you know? Today, I am going to share it with you.



Optical fiber jumpers connect equipment and optical fiber wiring links by installing connectors on both ends of the optical cable; they have a thicker protective layer and are generally used for the connection between optical transceivers and terminal boxes, and are used in optical fiber communication systems, optical fiber Access network, optical fiber data transmission and local area network and other fields. Let's take a look at the finished fiber jumper diagram first.



Fiber Jumper

We know what fiber jumpers look like, so what are the types of fiber jumpers? What is the difference? Continue to look down below.



Optical fiber jumpers can be divided into common silicon-based single-mode and multi-mode jumpers according to different transmission media, and other optical fiber jumpers such as plastic as the transmission medium; according to the structure of the connector, they can be divided into: FC jumpers , SC jumper, ST jumper, LC jumper, MTRJ jumper, MPO jumper, MU jumper, SMA jumper, FDDI jumper, E2000 jumper, DIN4 jumper, D4 jumper and so on. The following is the infiberone optical module mall to introduce several common optical fiber connectors:



①FC type optical fiber connector: The external strengthening method is a metal sleeve, and the fastening method is a turnbuckle. Generally used on the ODF side (the most used on the patch panel) Example: FC type mtp fiber jumper



②SC-type optical fiber connector: the connector for connecting the GBIC optical module, its shell is rectangular, and the fastening method is the plug-and-pull type, which does not need to be rotated. (The most used on router switches) Example: SC type mtp fiber jumper



③ST type optical fiber connector: commonly used in optical fiber distribution frame, the outer shell is round, and the fastening method is turnbuckle. (For 10Base-F connections, the connectors are usually ST type. Often used in fiber optic distribution frames)



④LC-type fiber optic connector: a connector for connecting SFP modules, which is made with a modular jack (RJ) latch mechanism that is easy to operate. (Commonly used in routers) Example: LC type mtp fiber jumper



⑤MT-RJ: A square fiber optic connector with integrated transceiver, one dual fiber transceiver integrated. The MTRJ type fiber patch cord consists of two high precision plastic molded connectors and fiber optic cables. The outer parts of the connector are precision plastic parts, including a push-pull plug-in clamping mechanism.



Suitable for indoor applications in telecommunication and data network systems.
