The difference between fiber optic cable splicing and fiber optic cable termination

2022-08-09
300

No matter which laying method is adopted outside the office, the optical cable line must eventually enter the terminal office or the relay station. The terminal office and the relay station are collectively referred to as the office station. After the optical cable line reaches the central station, it needs to be connected with the optical terminal. This connection is called the optical cable end.



The meaning of the end of the optical cable means that after the outdoor optical cable enters the equipment room, the outer sheath of the optical cable is stripped to a certain length, so that the optical fiber sleeve and the strengthening core are exposed, and the following operations are performed:

1. Fasten the metal reinforcement core to the ground terminal on the ODF frame, so that the metal parts of the optical cable are well grounded and avoid lightning strikes;



2. Bind the optical fiber sleeves with plastic ties in the ODF rack neatly, and each sleeve corresponds to a fiber splice tray;



3. Strip the optical fiber sleeve to a certain length, splicing the optical fiber and the pigtail, and then arrange the pigtail and optical fiber neatly in the splice tray;

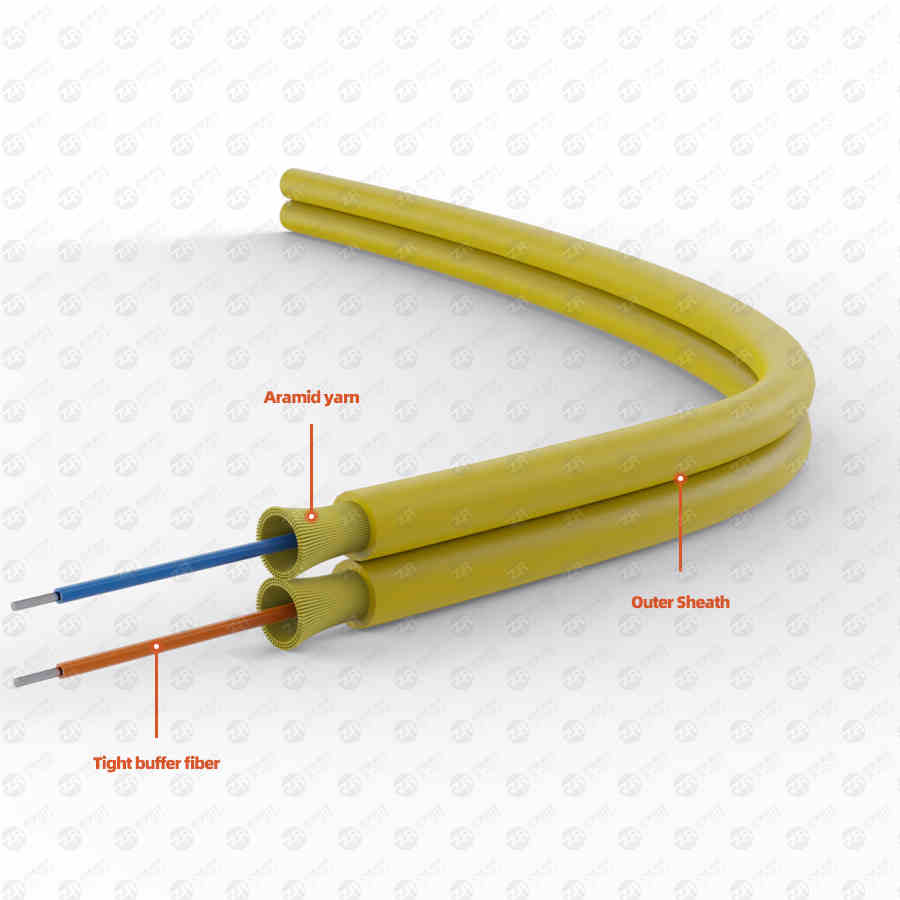

fiber optic cable

4. Fix the optical cable tag on the optical cable to mark the optical cable;



5. Fill in the open route corresponding to each fiber core in the data label on the ODF frame for maintenance and search.



The difference between fiber optic cable splicing and fiber optic cable termination

Optical cable splicing: generally refers to the connection between two optical cables, usually done in a splice box or junction box in the field, that is, two optical fibers are spliced ​​together with a fusion splicer.



Optical fiber cable end: generally refers to the optical fiber cable to the central office and then spliced ​​with pigtails to connect with optical transceivers and other equipment.



For the monitoring of optical fiber fusion quality, there are currently three monitoring methods in engineering.



One is to use the display screen of the fusion splicer to monitor;



The second is to use OTDR to monitor the connection point;



The third is to use the light source and optical power meter to cut or insert the splicing loss, but because cutting or inserting is a destructive test, it is often not used in engineering.
