Optical fiber jumper management method

2022-08-02
552

Optical fiber jumper is a commonly used product in optical fiber communication. Although it seems very simple, it is not. Optical fiber jumper equipment has strict preservation and management methods. Only when it is well managed can it lay a solid foundation for our network. According to the performance and maintenance of optical fiber patch cords, we can draw the following 6 methods to improve the flexibility and reliability of optical fiber patch cord management:



Fiber Patch Cord Equipment

Optical fiber jumper management method

1. Pay attention to the bending radius of the fiber jumper. Generally speaking, the bending radius of fiber jumpers with diameters of 1.6mm and 3.0mm cannot be less than 3.5cm, and the bending radius that MPO fiber jumpers can withstand cannot be less than 10 times its diameter.



2. Do not pull or squeeze the fiber jumper. When installing a fiber optic patch cord, excessive force may put stress on the fiber optic patch cord and the connectors at both ends, affecting its performance. It is worth noting that if you need to use a lot of force to pull a fiber optic patch cord, then there may be some problems in the middle.

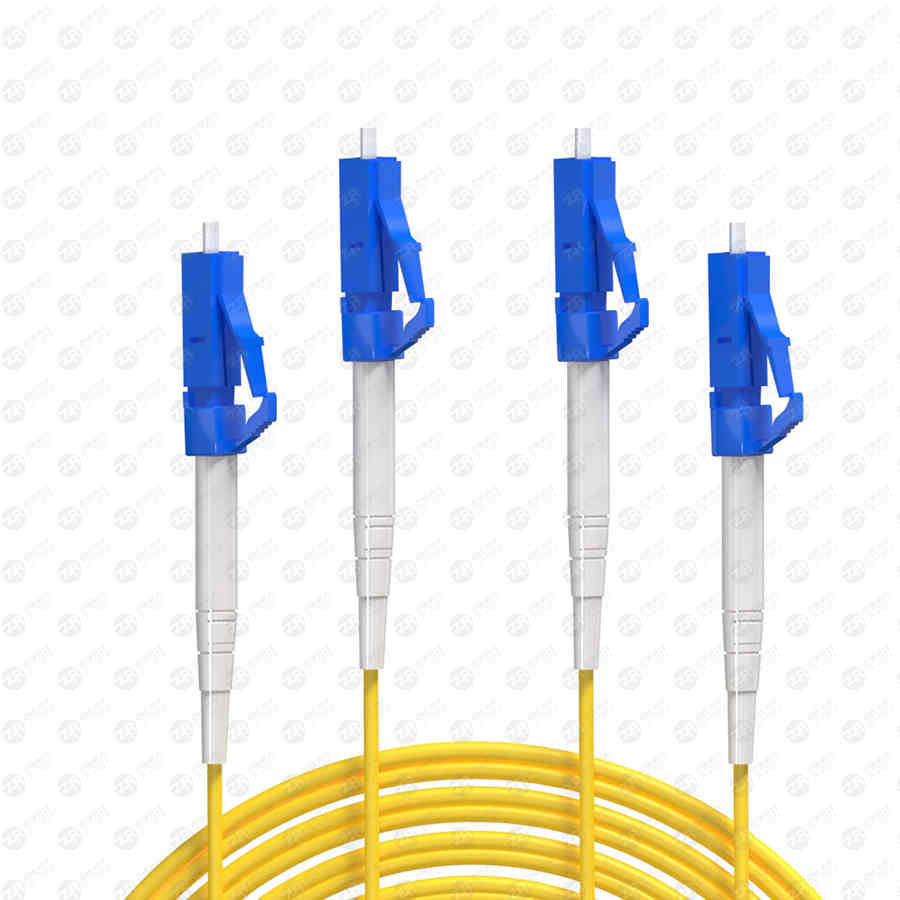

lc lc

3. Route the jumper according to the path of the fiber jumper. If the existing jumper length is suitable for the current application, the jumper can be reused, however, you still need to remove the jumper from the fiber distribution frame and reinstall the jumper according to the new path Wire. This is the only way to ensure that the jumper is not knotted, bent, or stretched. In order to route patch cords efficiently, a suitable path for the patch cord should be found between the two ports, while avoiding crowding and entanglement of the patch cords.



4. Manage the patch cords in bundles or ties to keep the panel looking neat, however, bundling or tying the patch cords too tightly will increase the risk of over-extrusion. To avoid this problem, you can "unbind" the fiber jumper appropriately so that the fiber jumper can move freely.



5. Labeling is a necessary job and one of the most important jobs for network system administrators. Proper labelling at any management point in the network cabling infrastructure, including patch panels, is essential so that network technicians can pinpoint the origin and destination of fiber optic cables.



6. Check whether the fiber jumper has physical damage, including indentation and connector damage caused by sudden bending of the sheath.



The management of optical fiber jumpers can not only increase the reliability and flexibility of the optical fiber network system, but also reduce the operation and maintenance costs of the optical fiber network. ZR Fiber focuses on the R&D and sales of optical communication products, and has a number of patents in the field of optical communication. There are over 10,000 product types, including fiber patch cords, MPO/MTP data centers, fiber optic adapters, etc. All ZR Fiber products meet international and domestic standards.
