What are the special purpose optical cables

2022-08-11
530

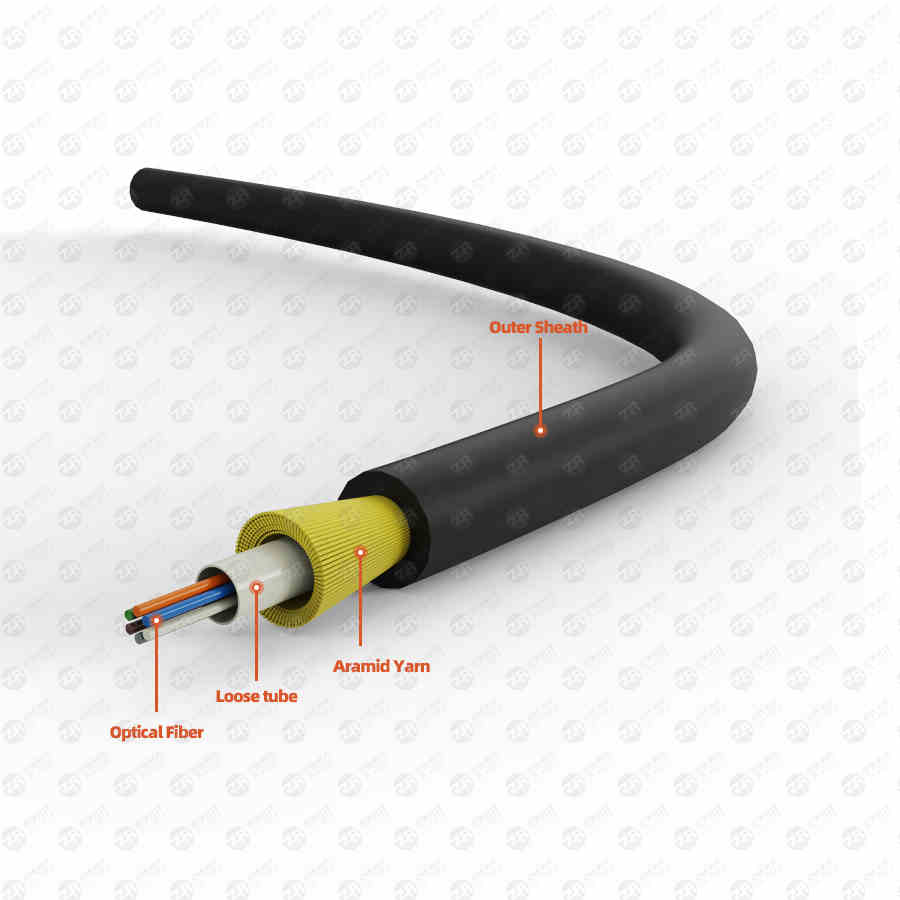

Optical cables are mainly composed of optical fibers (glass filaments as thin as hair), plastic protective sleeves and plastic sheaths. Optical cable is a kind of communication line in which a necessary number of optical fibers form a cable core according to a necessary form, and is covered with a sheath, and some are also covered with an outer sheath to realize optical signal transmission. That is: a cable formed by an optical fiber (optical transmission carrier) undergoing necessary processes.



special purpose cable

ribbon cable

An optical fiber cable processed as a unit with a plurality of single optical fibers colored, stacked into ribbons and double-coated optical fiber ribbons. There are two types of optical fibers, namely the encapsulated type and the edge-bonded type, the former can withstand lateral pressure, and the latter has a thinner thickness. Each band can have 4, 8, 12 or 16 fibers. The fiber spacing in the band is 0.28mm (for 4, 8) and 0.3mm (for 12 and 16), neatly arranged, with flatness in the vertical direction, that is, the deviation requirement, which should not be greater than 30, 40, 50um (depending on the in-band) (depending on the number of optical fibers) to facilitate cluster (fusion) splicing. The in-band optical fiber uses the chromatogram in an orderly manner, which is convenient for identification during maintenance and connection. The optical fiber ribbon is small in size, which can improve the packing density of optical fibers in the optical cable, and can form a large number of cores, such as 320 to 3456 cores. It is suitable for the current fast-growing optical fiber access network.

adss cable

All-dielectric self-supporting cable

Abbreviated as ADSS (=AllDielectricself-support) optical cable, the reinforcing element for tension resistance is not metal but aramid yarn and glass fiber reinforced plastic (FRP). It is mainly used in high-power occasions, such as electric power and railway communication systems; at the same time, it is used in large-span occasions such as crossing rivers or complex terrain. ADSS fiber optic cable can be constructed without interruption, track resistance, and wide temperature range.



Ground wire composite optical cable

OPGW (=OpticalPowerGroundedWaveguide) for short, also known as optical fiber overhead ground wire, the ground wire in the power transmission line contains optical fiber units for communication. This kind of optical cable achieves both, that is, the electrical properties and mechanical properties of the ground wire are not damaged due to the configuration of the optical fiber, and the optical fiber unit should also be properly protected from damage. There are lead frame type, stainless steel tube type and submarine optical cable type.



submarine cable

Optical cables laid on the seabed are used in shallow seas and deep seas. The characteristics of this optical cable; one is to withstand a large hydrostatic pressure (1 ton per 10m deep) and the drag force in the casting process; the other is to prevent hydrogen from invading the optical fiber. It has been confirmed that hydrogen will cause the optical fiber to increase the attenuation; the third is the large span of the hop.



In submarine cables the fiber optic units are placed in the center of the cable and in a custom stainless steel tube. The tube is surrounded by high-strength arched steel wires. The steel wire layer is covered with copper tube for remote supply, and it also prevents micro/macro bending when laying the optical cable. The outer sheath is then extruded. It may also be pinned to protect against sharps, including shark bites. Interoceanic submarine optical cables have already landed in Shanghai, Qingdao and Shantou in my country.



The above is all the content of special-purpose optical cables. I hope that the above can give you some help.
